PC50
Professional 5.25" In-Ceiling Speakers (PAIR)
PC50
In-Ceiling Speakers, Professional Collection
Professional Collection - 5" In-Ceiling Loudspeaker with 5.25" Injection-Molded Polypropylene Woofer and Exclusive DPSD tweeter Technology for the Tweeter (8-ohm or 70V). (Sold in pairs)
Includes a round and square grill in either black or white.
THE PROFESSIONAL COLLECTION
The professional collection are commercial 70/100v loudspeakers that make your installs easier.
 |
PERFORMANCELow-distortion Dual Plane Stabilized Diaphragm (DSPD) tweeters. Premium drivers and select cones. Transparent cross-over for audiophile sound quality. VERSATILITYFront-facing premium 70/100V taps, standard pivoting tweeters, three woofer sizes and three configurations for any application. POWERFULBest-in-class transformer for when volume is needed, dual ports and passive radiators for big, deep bass. PRACTICALQuick and easy installation, secure support cables, premium dog-ears, and Euroblock connectors. |
 |

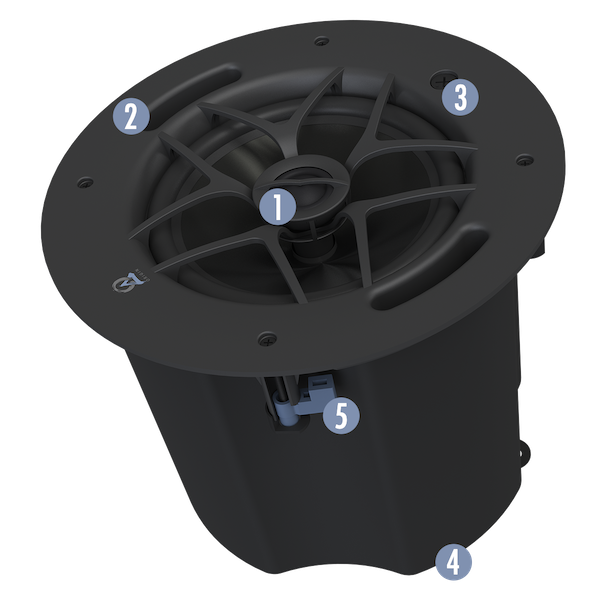

PROFESSIONAL IN-CEILING LOUDSPEAKERS1. DPSD Tweeter with Multi-Motion Tweeter 2. Bass Enhancing Woofer Ports 3. Front Mounted 70/100v Tap with Premium Transformer 4. Euroblock Connector and Conduit Lock 5. Upgraded Resin Dog-Ear Mounting System |
Specifications
- Model Number: PC50
- Part Number: SPC50
- Tweeter Diameter: 3/4" (20mm)
- Tweeter Dome: Silk DPSD
- Woofer Diameter: 5 1/4" (134mm)
- Woofer Cone: Injection Molded Polypropylene
- Frequency Response: 54Hz-20kHz
- Recommended Amplifier Power: 60W
- Sensitivity: 89dB +/- 3dB
- Diameter: 8 1/4 (210mm)
- Cutout Diameter: 7 1/2 (190mm)
- Collection: Professional
- Nominal Impedance: 70V or 6 Ohm
- Mounting Depth: 8 1/8” (206mm)
