This advanced custom installation amp brings NAD Masters Series performance to the rack space. It’s tough to improve on that performance and so the updated CI 8-150 DSP v2 retains those performance levels and adds a new user interface, more features and improved efficiency.

Full Disclosure Power

The sophisticated CI 8-150 DSP v2 is capable of delivering a conservative 150 watts per channel at 8 ohms into all channels simultaneously, bridgeable to 280 watts per channel. IHF Dynamic Power in bridged mode is 4 x 670 watts per channel at 4 ohms.

As per NAD’s FDP ratings, the power we declare is what you can expect in the real world, we rate our amplifiers based on continuous power into 8ohms, with all channels running simultaneously, using a full frequency response and THD at rated power.

No matter what you throw at the CI 8-150 DSP v2, it won’t flinch.

Hybrid Digital Amplification

The CI 8-150 DSP v2 is designed to deliver uncompromised performance within the custom environment. With its nCore output stage, the CI 8-150 DSP v2 shares the same pedigree as some of NAD’s prestigious Masters Series amplifiers. What makes this amplifier unique is its ability to deliver a level of detail and refinement unmatched by any distribution amplifier on the market today. Being load invariant with a high current output, the CI 8-150 DSP v2 is as comfortable driving 4 ohm loads as it is 8 ohm. The THD and noise floors are beyond what you’d expect from a CI amplifier, meaning that the dynamic range and linearity of this amplifier wouldn’t be out of place in a hi-fi set up.

Rack Space Efficiency and Reliability

NAD is keenly aware that reliability is paramount for a professional installer, so all models will be based on tried and true amplification platforms delivering stable and reliable performance. Since rack real estate is always at a premium, NAD CI amps have been designed to take up as little room as possible. Thermostatic fans draw in cool air from the front of the unit and out through the rear vents, meaning you don’t need to leave ventilation gaps between each unit for them to stay cool. For the CI 8-150 DSP v2 efficiency and heat dissipation has been improved even further by adding the ability for unused amplifier channels to switch off completely in Zone Sleep mode.

Web UI/DSP

The CI 8-150 DSP v2 is network ready for simple set up, via the custom WebUI. The updated interface still allows fast set up of IO but with new clearer layout, plus the creation of DSP profiles using the Parametric EQ. In addition is a new Dashboard, providing a live read out of the unit’s status, improved power management, faster startup time, user password protection, channel grouping and global input on/off per zone and zone sleep with instant wake time. Over and above the previous V1, there is an expanded DSP suite with Peak and RMS limiters, delay and phase control so that bridged channels can safely be used to power subwoofers. I/O switching and routing can also be managed via compatible control systems with drivers available for Crestron, Control4, Elan & RTI.

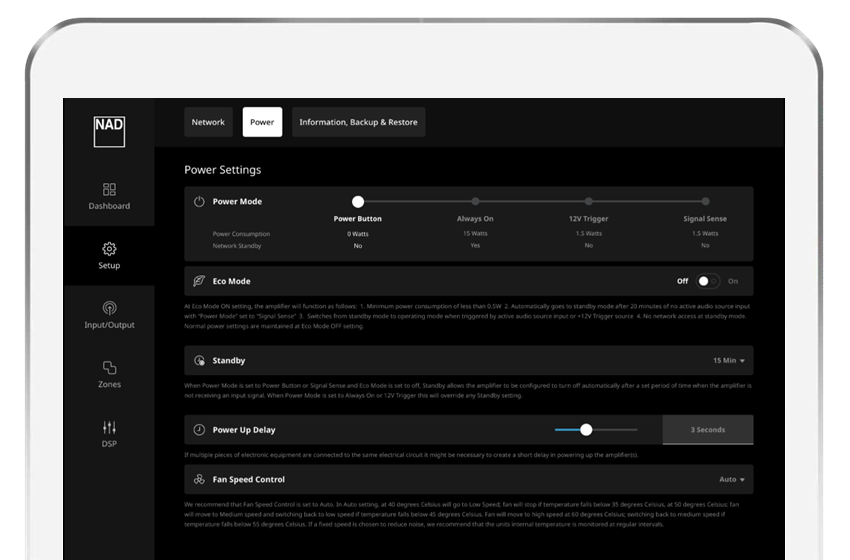

NAD CI Amps v2 UI



System Suggestion

Combine the CI 8-150 DSP v2 with an NAD CI BluOS Enabled audio streamer to create a complete, hi- res multi-room package of incredible value and quality. Such is the power and performance of this amplifier, it’s also at home in a high end custom theatre.


Product highlights:

  • 8 Channels x 150 Watts @ 8 Ohms, Hybrid Digital with Hypex nCore
  • Bridgeable to 4 channels X 280 Watts @ 8 Ohms
  • Effectively handles long cable runs and difficult speaker loads
  • Ethernet port for IP control, custom web UI with virtual I/O panel and performance diagnostics
  • DSP with 5 band parametric EQ, plus high and low pass filters, Peak and RMS Limiters, Delay and Phase Control
  • 4 stereo RCA inputs
  • 2 x digital coax stereo inputs, 2 x optical stereo inputs
  • Dual global Inputs/Outputs
  • 2U Rack height
  • 5W Standby Mode, 3W Network Standby
  • 12V Trigger In; IR In/Out
  • Thermostatic fan cooling with front vents
  • Universal AC Power Supply
  • Multiple Power-up options including Auto Sense turn on, as well as Eco Mode


Professional installation recommended
8x 150 Watts into 8 ohms
8x 180 Watts into 4 ohms
280W into 8 ohms bridged mode (switchable per zone pair)


Weight - 17.6kg
Width - 483mm
Height - 90mm
Depth - 435mm


Professional installation recommended

Data Sheet

pdf-icon-843-498

Manual

pdf-icon-843-498

Quick Start Guide

pdf-icon-843-498

IP Control Codes

pdf-icon-843-498




AV System Integrator 3-976

***if you are interested in having this model professionally installed, please contact us for an authorised Dealer/Installer in your region

    btn enquire-928

Control Integration drivers are available here for most major Automation and Smart Home Control Systems:
NAD Control Integration Drivers


  • CONTROL4
  • CRESTRON
  • URC
  • RTI
  • LUTRON
  • PUSH
  • IPORT
  • ELAN
OTHER
  • BluOS Integration Utility
  • BluOS Simple API Document
  • NAD to Pronto
  • PC Interface Software
  • RS232 Test Program
  • HTR Remote Interface

8x 150 Watts into 8 ohms
8x 180 Watts into 4 ohms
280W into 8 ohms bridged mode (switchable per zone pair)


Weight - 17.6kg
Width - 483mm
Height - 90mm
Depth - 435mm


Professional installation recommended
